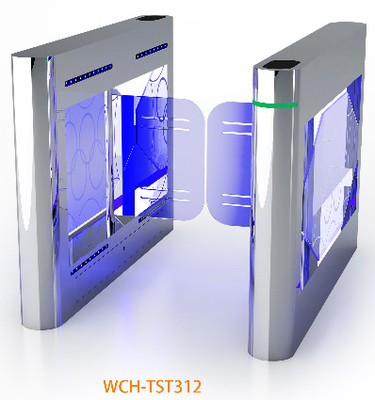

Name: 202 or 304 Grade Stainless Steel Single Swing Turnstile Gate Professional Access Control Ion Manufacturer Automatic Swing Gate Barrier
Brand: 202 or 304 Grade Stainless Steel Single Swing Turnstile Gate Professional Access Control Ion Manufacturer Automatic Swing Gate Barrier
SKU: WCH-TST312
Price: 1 USD
Availability: InStock
Rating: 4.9 (172 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: WCH-TST312

Housing Size: 1200*200*980

Net Weight: 60kg

Gross Weight: 65kg

Power supply voltage: AC220VÂ±10V, 50Â±10HZ

Working temperature: -25â„ƒ--+60â„ƒ

Control type: IC/ID/Barcode control accepted

Drive motor: DC motor 200w 24v

swing width: 600-900mm

Housing Material: 202 or 304 grade stainless steel opt ional

Working environme nt: indoor or outdoor (with a tent over)

Informazioni di base

Model Number: WCH-TST312

Termini di pagamento e spedizione

Descrizione di prodotto

Product function :

1,Self-test and alarm function,user-friendly maintenance and use ;With automatic reset function,gate opening after a specified period of time. If user does not pass,the system will automatically cancel th

e user's current access permission; Auto-reset delay, the standard automatic reset is after 10 seconds.

2,Through the main control on the half-built small-press plate,Programmable devices show running status.

3,When valid card is read and passenger passed,arm can be delayed to close from 1-10s which can b

e set on the control panel.

4,One-directional,bi-directional function.

5,Auto-reposition function:After card is read,if passenger does not pass within regulated time period,

swing gate will cancel this passing permission,The regulated time period for passing can be set by management.

6,If passenger passes without card being read or valid card read,Swing barrier will alarm until passen

ger gets back from the swing barrier and then uses a valid card to be read for passing.

7,Erosion control features,in the absence of gate opening signal receipt,the arm will automatically be locked.

8,Anti-rush function:if there is no open signal arm will hold tightly.

9,Adjustable arm swing synchronized (for the double pendulum case).

10,Adjustable normally open or closed, in order to meet the requirements of the different venues,

11,Connecting with a variety of reading devices which can be linked to the receiving signal relay switch.

12,Swing gate is with RS485 interface for long-distance control concern and the integration of variou s readers and writers. Managing computer directly through the remote control and management

13,Auto power-off flap opening,power-on self-closing,Meets fire safety requirements.

14,Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the swing barrier,photocell will detect this situation and will not close. After passenger has passed,arm will close automatically. During its re position,if arm meets any obstacle,arm will get back automatically or stop working for a while with very slight force. Also it will alarm.

15,Direction display to guide passenger which direction to go.

16,Card-reading with memory or without memory function.

17,Swing barrier can control the population inside in the control of software.

18,Stable running with little noise

Product specifications:

Name	Swing gate	Model	WCH-TST312
Housing Size	1200200980	Power supply voltage	AC220V±10V, 50±10HZ
Net Weight	60kg	Working temperature	-25℃--+60℃
Gross Weight	65kg	Relative humidity	≤90% non-condensing
Drive current	≥10mA	Drive motor	DC motor 200w 24v
Time for swing open and closed	1-2S	Control type	IC/ID/Barcode control accepted
Passing time	3S	Communication dist ance	≤1200m
Time for auto-reset	10S	Swing angle	0-180
swing width	600-900mm	Max channel width	600-900mm
Communication Inter face	RS485/RS232	Working environme nt	indoor or outdoor (with a tent over)
Machine center	Imported German technological motor	Working mode	one directional or bi-directional optional
Housing Material	202 or 304 grade stainlesssteel optional	Passing speed	40persons/min(normal open m ode) 30persons/min(normal closed mode)

Company Profile

Shenzhen WENCAN technology Co., Ltd is a professional Hi-Tech enterprise specialized in the research development and manufacturing of parking system and turnstile gate system with over 10 years’ experience in smart car park industry. Our main product lines include: Tripod turnstile, swing barrier, flap barrier, barrier gate, vehicle parking management system, parking guidance system, license plate recognition system, and face recognition system.

Most of products has acquired CE certificate, and our factory also gained ISO9001 Quality certificate. Our main market is South-East Asia, South Asia, Middle East, Europe, Africa, and South America. In order to provide our customer better service, more distributors are needed to expand our marketing share and gain win-win outcomes. Welcome to join our distribution network and become our agents in your local.

Terms & Condition

1. Warranty: 1 year

2. Certificates: CE

3. MOQ: 1 piece

4. OEM: Available

5. Lead time: 3~7 working days
