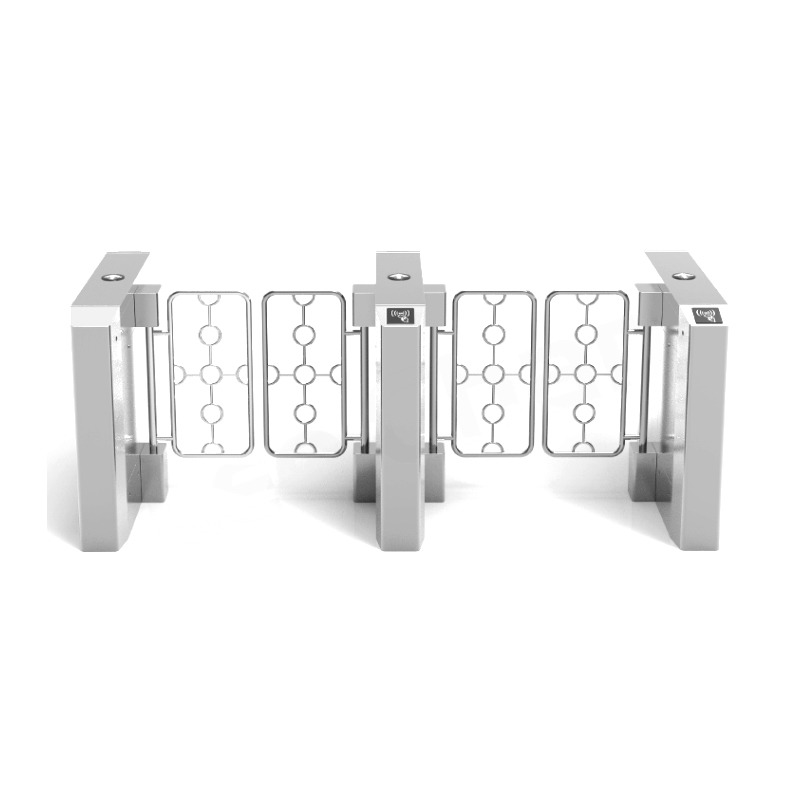

Quality Suitable Price Smooth Guaranteed Height Automatic Speed ​​Sliding Turnstile Gate

Quality Suitable Price Smooth Guaranteed Height Automatic Speed ​​Sliding Turnstile Gate
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Informazioni di base
Termini di pagamento e spedizione
Descrizione di prodotto
Products Description

Quick Details.

Sliding Turnstile Intellgient sliding turnstile is the intelligent access management produced by our company after several years R & D , this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination.
Model
JS-PYZ-003
Case Material
SS304(1.5mm, 2.0mm optional)/Baking varnish
Production Process
CNC Laser Cutting
Size
1200*330*980mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Brushless Motor Optional)
Electromagentic
Duty Cycle 100%
Passage Width
550mm
Flap Size
300*1200mm(Customization acceptable for heigth)
Flap Material
Acrylic
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1S
Throughput Rate
30-40 persons/minute(Normally Closed) or 40 persons/(Normally Open)
Reset Time after Power on
3S
MCBF
5,000,000 Cycles
Reset Time after failure
10S
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
Operation Humidity
0~90%(No Freezing)
Operation Temperature
-10℃~+50℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
Stainless Steel 304 Full Height Sliding Turnstile Speed Sliding Turnstile Gate Automatic Sliding Barrier Gate Turnstile Factory
The drum shape sliding gate JS-PYZ-003, the whole profile is stamped from the standard SS304, beautiful and generous shape, rust proof, durable, resisting external damage, adapoting standard electrical interface can easily integrate the bar code card, ID card, IC card and other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same time can prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention requirements to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency.
Advantage
1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability. 2. Smoothly Running, small noise, simple and reliable restructure. 3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable. Hydraulic movement unit is recommended for scenic spot ticketchecking advice. 4. Control panel with counting function, LCD/LED display function (optional) 5. High precision sensor group and intelligent recognition algorithm design can identify the number and direction of pedstrians in access very well, greatly improving the accuracy of anti-pinching and anti-trailing.Multi-point detection, more suitable for children or pedstrians with luggage going through. 6. Intelligent voice and sound prompts make the device more user-friendly and easier to use. 7. With auto malfunction inspection and alarm function, convenient for user maintenance and use. 8. Mechanical anti-pinch, infrared sensor anti-pinch function, in the process of turnstile reset obstruction, the motor automatically stop Operation within the set time, reseting after defacult delay time until the reset, small force(≤2kg). 9. Sound and light alarm function: including illegal break-in, trailing alarm. 10. Anti - impact function, the flap automatic locked without the open signal. 11. With automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open. 12. Infrared sensor reset, infrared sensor anti-pinch function (standard 4 pairs of infrared ray). 13. After power off, the access automatically open and automatically closed after power on. 14. Available connection with access control system, consumer system, electronic ticket system, biometric identification system, electrostatic tester and other equipments. 15. Single-direction or Bi-direction control pedestrians access, infrared sensor access. 16. Available for remote control and management directly by computer.
Transparent Acrylic Flap 10mm thickness flap, the acrylic barrier arm width 280mm(Color Optional) Strong Mechanic Component The stamping formed motion machinism and CNC machine Connector offer the stable locking & unlocking Unique Electric Control Centre Speical designed mainboard, airr swtich and postion swithc all-one the water proof box, no rust risk in the drain.
Company Profile
Xiamen Artemis e-commerce Co., Ltd.focuses on the trade services and has own production supply chainan and R&D team. Its main categories include security protection, green plants and flowers, sports products, has 6 years of e-commerce trade service experience

company advantage.

1.Comprehensive trade services, best customer experience.
2.Independent production supply chain with guaranteed timeliness.
3.Independent R & D team to meet the needs of personalized customization.
4.Full link direct marketing mode, more cost-effective products
Sample Room
Production Process
Certifications
Packing & Shipping
FAQ
Q1: can we connect your access control system with ours? A: Yes, we provide SDK and software development services with connection ports. Q2: is your revolving door / emergency door waterproof? A: Yes, our revolving gate / emergency gate is waterproof.
Q3: how do we install those revolving doors / barrier doors? Is it easy to do?
Yes, it's really easy to install and we've done most of the work before we sent the product. You just need to screw in the gate and connect the power cable to the Internet cable.

Q4: can you make it according to our size?
A: we can provide customized services according to your detailed requirements, or design unique revolving door products according to your real site to make different sizes, software and functions.
