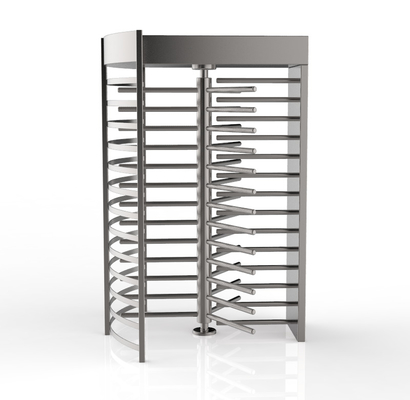

Name: 304 Full Height Stainless Steel Powder Coated Turnstile Door Glass Door Turnstile Drawing Sizes
Brand: 304 Full Height Stainless Steel Powder Coated Turnstile Door Glass Door Turnstile Drawing Sizes
SKU: HT01, HT01
Price: 1 USD
Availability: InStock
Rating: 5 (197 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: HT01, HT01

Certificate: CE CCC RoHS FCC

Name: High speed turnstile gate

Material: 304 drawing stainless steel

delivery: Shipping/air freight,etc

Motor: 24v DC brushless motor

Language: English

Warranty: I Year

Informazioni di base

Certificazione: CE CCC RoHS FCC

Model Number: HT01, HT01

Termini di pagamento e spedizione

Packaging Details: wooden cartoon or cartoon optional

Supply Ability: 100 Pair/Pairs per Week

Descrizione di prodotto

Products Description

HT01

All the gates models are space efficient security turnstile gate, with a compact design,yet offer sufficient space to integrate any access control system.They can be mounted with display, passage counter,card reader,token operation traffic lights,command console,alarm system against unauthorized entries,interfaced with a PC through a RS232(RS485,TCP-IP) line.

The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in
case of crisis evacuations.Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in.for example,a reception area.Our gates are used in applications including stadiums and arenas,perimeter and interior security,recreation and amusement parks,retail crowd control,transit fare collection and lobby access control.

Product advantages

● Use of RFID IC cards,ID cards,Barcode or magnetic cards as automatic identification system and achieve access attendance,fees or

function.
● A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth
passage.
● Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
● Full-auto mode:The passenger pushes the arm at a little strength after reading card,and the arm will automatically rotate
forward by motor power until the arm arrives in home position.

● Pure mechanical mode:The passenger pushes the arm by hand until he goes through the barriers.
● Single or bi-directional function in mechanical and electrical versions.
● Automatic reset of barrier arms after each passage.
● Cable or wireless remote control panel key override control for emergency situations.Automatically arm drop down when power off or emergency.
● Adjustable time out delay.

Technical specifications

Model	HT01
Power supply	100V to 240V AC (large range of power input voltage)
Control circuit	DC 24V
Communication interface	RS485 ,TCP-IP
Material	304 stainless steel
Dimension	2300mm1600mm1500mm
Safety touch	automatic drop after power failure
Passage width	≤650mm
Powder coated	Optional
Net Weight	210kg
Operating temperature	- 25 to 70 ° C (- 4 to 158 ° f)
Storage temperature	- 40 to 80 ° C (- 40 to 176 ° f)
Relative humidity	5 ~95% in non solidification state

FACTORY TOUR

Factory products

keyway Planer

Face Recognition Aging Test Area

SUS304 Laser Cutting Machine

Turnstile Gate Assembly Workshop

Barrier Gate Assembly Workshop

Product packaging

Optional shipping terms:EXW,FOB,DDU,DDP etc

Company Profile

SHENZHEN SHANGMI INTELLIGENT CO.,LTD Opened in Shenzhen in 2012, Szsmi and SMI are well-known brands of our company.
More details reference to the website: www.szsmi-access.com &szshangmi.com

Our basic goal is to provide better channel solution services for the world.
We focus on the the design& production for Turnstile gate, Face recognition, Barrier Gate, body temperature products，safety-check Door etc.

So far, our factory has two production workshops, a total of 150 production workers, two 3000kW SUS304 laser cutting machines,
five bending machines, three welding production lines, one aging laboratory and two R & D teams (average age 29).

SZSMI Won the “2016 China Security Products well-known brand” Although it has designs many ”off-the-shelf” open standards,hardware and software solutions, we know that one size doesn’t fit all. Solutions require inter operability,that means, adapting, regardless of whether it components or those of our partners or competitors. SMI prides itself on being a single source for custom security hardware and software development in addition to integration.

Exhibition

CPSE

China International Social Public Security Expo is the only professional public security exhibition in China certified by BPA
international media certification agency.
Founded in Shenzhen Special Economic Zone in 1989, it has 30 years of growth and 17 security exhibitions, serving more than 9700
enterprises, and providing 651741 professional buyers with hundreds of billions of security business opportunities. The largest
security exhibition in the world, the most authoritative and influential Security Exhibition in Asia.

FAQ

1. How about the quality of your products? We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.

2.How do you do after-sale service?

We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

3.How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How about the payment method? Standard products: 30% deposit, 70% balance payment before shipment.

5. How about your package? Seaworthy wooden case
