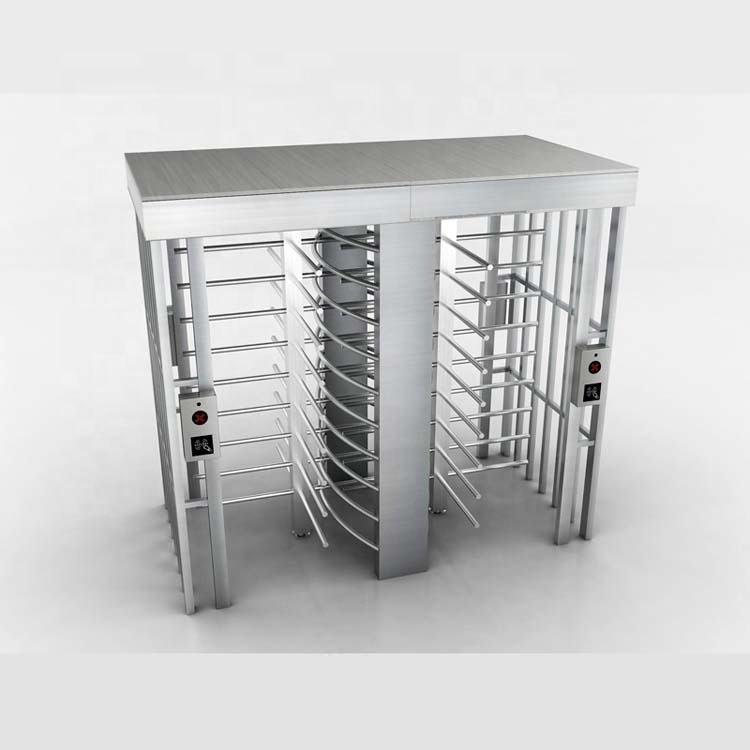

Name: Semi Automatic Security Access Control Management Factor Price Full Height Turnstile Mechanism
Brand: Semi Automatic Security Access Control Management Factor Price Full Height Turnstile Mechanism
SKU: QL-TDZ 402S
Price: 1 USD
Availability: InStock
Rating: 4.8 (169 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: QL-TDZ 402S

Product Name: full height Turnstiles

Material: 304 Stainless Steel

Core: Hydraulic movement

Power voltage: AC220 Â±10%V/50 Â±10%HZ

Work environment: Outdoo(Canopy)and indoor

Open direction: Single and Double(optional)

Application: Security Access Control Management

Warranty: 1 Year

Informazioni di base

Model Number: QL-TDZ 402S

Termini di pagamento e spedizione

Packaging Details: standard packing we can customize accordind to client's requirement

Descrizione di prodotto

Product Description

Technical parameters
Power voltage	AC220 ±10%V/50 ±10%HZ	Open angle	120°/90°
Communication mode	232/485 TCP/TP	Pass speed	≦30 person/minutes
Movement	Hydraulic movement	Structure	304 stainless steel
Relative humidity	None-condensation	Open direction	Single and Double(optional)
Input signal	12v DC level or Dry contact signal	Work environment	Outdoo（Canopy）and indoor
Working Current	≤2000mA	Temperature	-10 ℃-- 50 ℃
Working Noise	Below 65 decibels	Relative humidity	≤90%, non-condensing

Product performance description

1. Through the built-in small press disk on the main control board, the running state of the programmable device.
2.Unique two-way anti-inversion function
3.anti-scour function, when the opening signal is not received, the channel bar will be locked automatically.

4. the channel is automatically unlocked after the power is cut off, and the function of free rotation can meet the requirements of fire fighting, and the channel is locked and closed automatically after the power is turned on.
5.with automatic reset function, after opening the gate, when pedestrians do not pass within a specified period of time, the system will automatically cancel the pedestrian traffic authority, and the reset time is 1S~60S adjustable (the default time of the system is 10s).

Details Images

Size:L2300*W1450*H2300mm

Packing&Shipping

carton box,wooden case for packing protection

Company Introduction

BEIJING QIANLIN HENG XING TECHNOLOGY Co.,LTD ,The company was founded in 2009, Beijing Qianlin Hengxing is a professional manufacturer of Intelligent products for more than 10 years, which headquartered in Beijing, and also has two branches from Shenzhen and Wuhu city. We provides high quality products like Turnstile ，Flap barrier ,Swing barrier ,Faical recognition terminal, Ticket vending Machine and other intelligent products to worldwide office areas, hotels, access gates, office buildings, schools, shopping malls,shops, communities,public services and management projects that require face access control. In manufacturing process, we insist a quality system standards, from the raw material to finish product process passed through arigorous quality control to ensure best durability, and assure that the products meet the requirements of our clients perfectly. Focus on intelligent entrance and exit control and automomous services

Our Services & Strength

Highly skilled technology research and development team, China's high-end level, we can do what the peer can do, we do the peer may not be able to do, excellent design, production, logistics team enough to meet the demand, improve the after-sales system.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

FAQ
1. Do you have full automatic tripod turnstile?

Yes. All semi-automatic tripod can be changed to full automatic, there is extra costs to do it.

2. How about the quality of your products?

We are in the highest level of quality with the most competitive price. At factory, we implement 5S management to control production process.

3. How do you do after-sale service?

We provide life-time technology support on line, by emails, video, phone etc , convenient to communicate with you directly.

4. How about the lead time?

Normally we have stock for the hot sale models of standard products.Regular products need 7-10 working days. The customized products need 15-20 working days.

5. How long is your warranty period?

One-year guarantee & Life-time technology support.

6. How about your package?

Seaworthy wooden case + Foam.
